ScreenEffects by Trplnr

A small flexible library for showing animated screen overlays to the user.

Download the datapack and resource pack!

Demo

This is a YouTube video, click to play.

Usage

Making Screen Effects using the builder Deno file:

[!IMPORTANT] Using this method requires the following to be installed in your system: Deno, ffmpeg. After getting those, restart your computer.

A screen effect is composed of multiple font frames that the datapack uses to show the animation.

A utility Deno JS file is provided with the resource pack inside the screen_effects folder to make this process easier.

1. Making the animation

[!NOTE]

• You can use any image editing software you like as long as it can export your animation into a spritesheet. Aseprite has this functionality.
• It is recommended to make a 256x256 .png file for the best results.

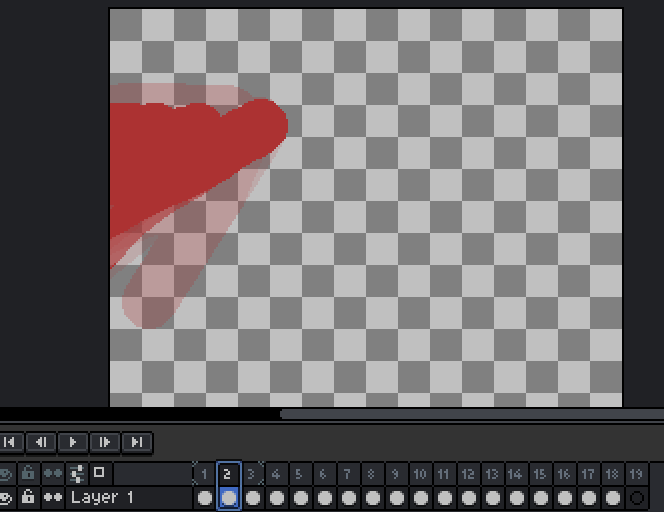

• Start by creating an animation.

• Export your animation into a vertical spritesheet inside the screen_effects folder.

• You can add more spritesheets inside the screen_effects folder if you want more screen effects.

2. Building the animations

• To prepare for building the animations, go inside the buildScreenEffects.js folder and adjust these configs.

// -------------CONFIGS---------------
// Replace with the namespace you use!
const NAMESPACE = "example";

// This logs what the builder is currently doing.
// If compiling is taking a while, disabling this will improve compilation time.
const debugMode = false;

// If you want the font JSON files to be formatted, make this boolean true.
const prettyPrintFontFiles = false;

// If you want to see the ffmpeg logs, make this boolean true.
// If compiling is taking a while, disabling this will improve compilation time.
const showFFMPEGLogs = false;
// -----------------------------------

• To make your amazing animations usable by the datapack, You can run a command in your terminal to convert your spritesheets into frames!
• Open your preferred terminal and make sure you are inside the screen_effects folder.
• After that, run this command

deno run --allow-all .\buildScreenEffects.js

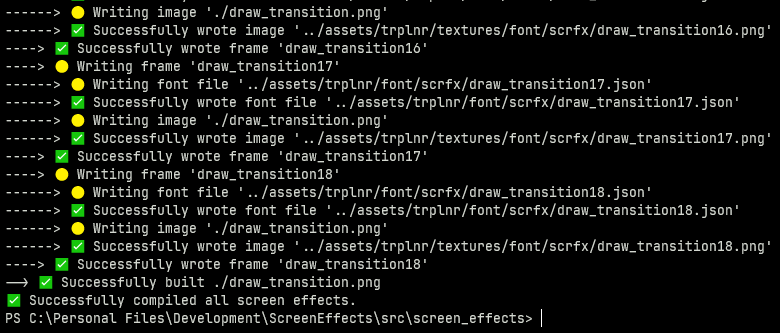

• After running that, if everything is successful, it should look like this:

• Congrats! You've successfully turned your wonderful animations into frames! :tada:

• If you only want to to compile 1 spritesheet, simply run

deno run --allow-all .\buildScreenEffects.js filename.png

---

Registering the Screen Effects

The datapack needs to have data to know what a screen effect is so you have to register it.

Here is an example on how you can register one.

ScreenEffect schema shown below this section.

# To add your own screen effects to the global registry,
# simply copy what is shown here.

data modify storage example:scrfx_data screen_effects set value [ \
    { \
        name: "examples:toast", \
        tps: 1, \
        frame_count: 31, \
        path: "example:scrfx/exampletoast" \
    }, \
    { \
        name: "examples:transition", \
        tps: 1, \
        frame_count: 69, \
        path: "example:scrfx/exampletransition", \
        callbacks: { \
            "26": "say This frame covers the whole screen" \
        } \
    }, \
]

function scrfx:api/register_screen_effect/register_group {storage: "example:scrfx_data", path: "screen_effects"}

The ScreenEffect Schema

This is the definition of a ScreenEffect.

[ // A screen effect group is just a list of screen effect definitions.
    {
        /**
        * The name of the screen effect,
        * preferrably namespaced.
        */
        name: <resource_location>,
        /**
         * How fast each frame
         * shows up measured in ticks.
         *
         * Just like fps but well in ticks.
         *
         * Must be above zero.
         */
        tps: <int>,

        /**
         * How many frames are in the animation.
         */
        frame_count: <int>,

        /**
         * The font resource location
         * of the animation with the
         * number at the end removed.
         */
        path: <resource_location>,
        /**
         * Defines what commands run in a certain frame.
         *
         * Optional.
         */
        callbacks?: {
            "<frame_number>": "<command>",
            ...
        }
    }
]

Running the Screen Effects

• Declare the animation to be played inside the scrfx:in id storage.
• Then execute as a player and run scrfx:play!

Example:

data modify storage scrfx:in id set value "ns:identifier"
execute as Trplnr run function scrfx:play

• You have successfully played a screen effect! :tada:
